PD-01
Hands-Free Pet Dryer
Both hands free, so you can hold the animal instead of the dryer
A neck-worn pet dryer with twin symmetrical barrels, 375 g, four temperature and speed settings up to 39 °C, and no battery pack at the back of the neck. Available for ODM/OEM — housing, colourway, branding and packaging to your brand.
Why it works
Twin barrel design
Left and right barrels run symmetrically and in sync, drying both sides at once instead of chasing the animal with one nozzle.
375 g, light enough to wear
Light enough to keep on through a full groom — the weight is what decides whether a wearable dryer gets used twice.
No battery at the neck
The pack sits in the barrels, so the neck band stays slim and flexible where it touches you.
Four settings, warm not hot
From 4.2 m/s cool air down to 1.0 m/s at 39 °C — warm enough to dry, never hot enough to alarm the animal.

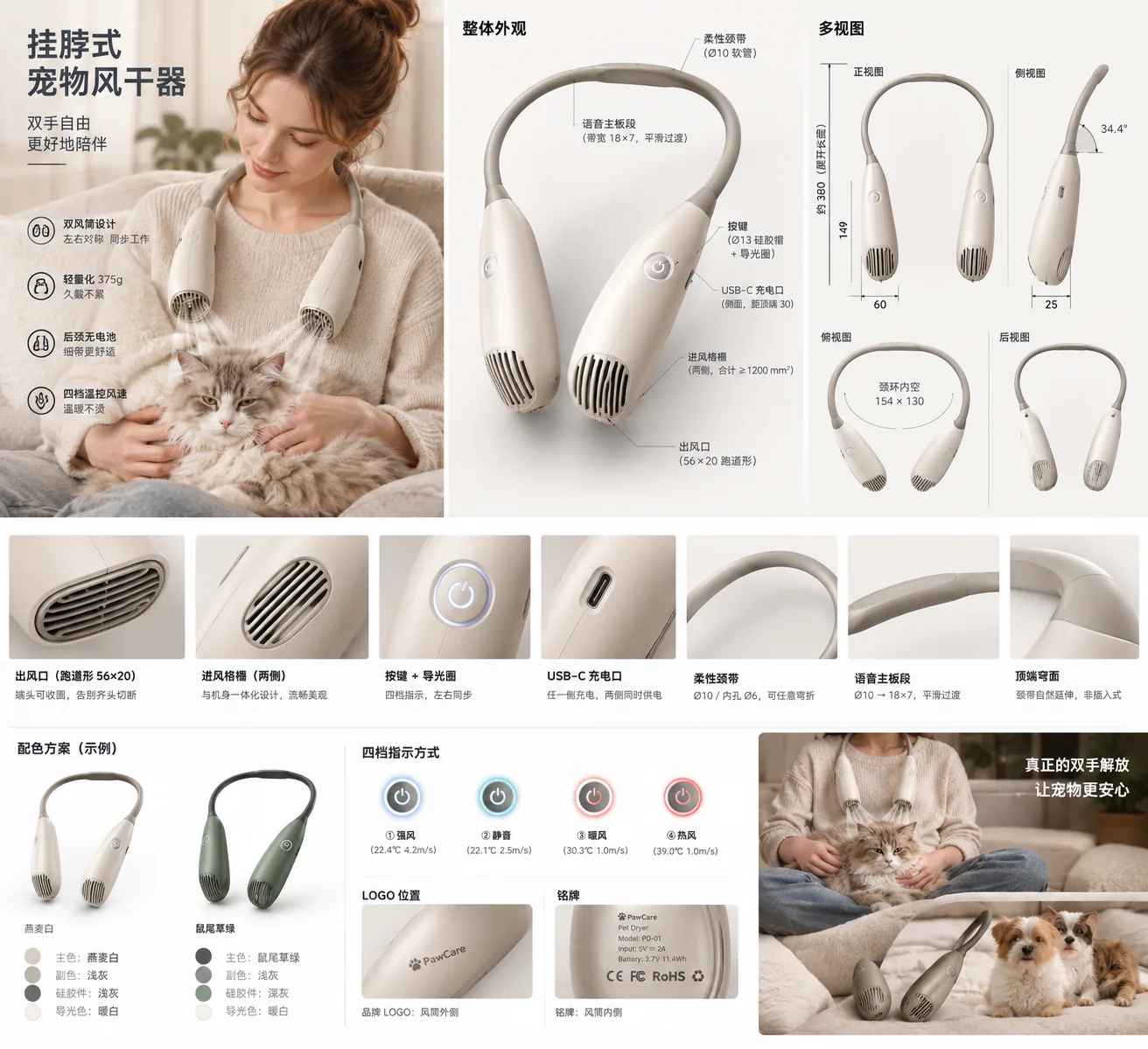

Specifications
Four settings
| 1 · Strong | 22.4 °C · 4.2 m/s |
|---|---|
| 2 · Quiet | 22.1 °C · 2.5 m/s |
| 3 · Warm | 30.3 °C · 1.0 m/s |
| 4 · Hot | 39.0 °C · 1.0 m/s |
Body & dimensions
| Weight | 375 g |
|---|---|
| Opened length | approx. 380 mm |
| Height / width / depth | 149 / 60 / 25 mm |
| Neck opening | 154 × 130 mm |
| Barrel angle | 34.4° |
Airflow & structure
| Outlet | Racetrack, 56 × 20 mm, retractable tip |
|---|---|
| Inlet grille | Both sides, ≥1200 mm² total |
| Neck band | Ø10 flexible tube, Ø6 inner bore, bends and holds |
| Board section | 18 × 7 mm, smooth transition from the band |
| Top curve | Band continues naturally — not a plug-in joint |
Power & controls
| Input | 5 V ⎓ 2 A, USB-C |
|---|---|
| Battery | 3.7 V, 11.4 Wh |
| Charging port | Either side charges both barrels |
| Button | Ø13 silicone cap with light ring, synced both sides |
Colourways
What you can change
- Colourway and surface finish, including silicone and light-guide colour
- Your logo on the outer barrel; rating plate on the inner barrel
- Airflow and temperature curve retuned for your market
- Retail packaging, manual and accessory bundle
- Battery capacity, within the certification you are targeting
Designed toward
- CE
- FCC
- RoHS
A reference design, not stock. We build it under your brand — colourway, logo, packaging and tuning are yours.
Request a Quote
Take the Hands-Free Pet Dryer to your brand
Tell us your target market, quantity and the certifications you need. You get a cost envelope and a schedule from an engineer, within one business day.
